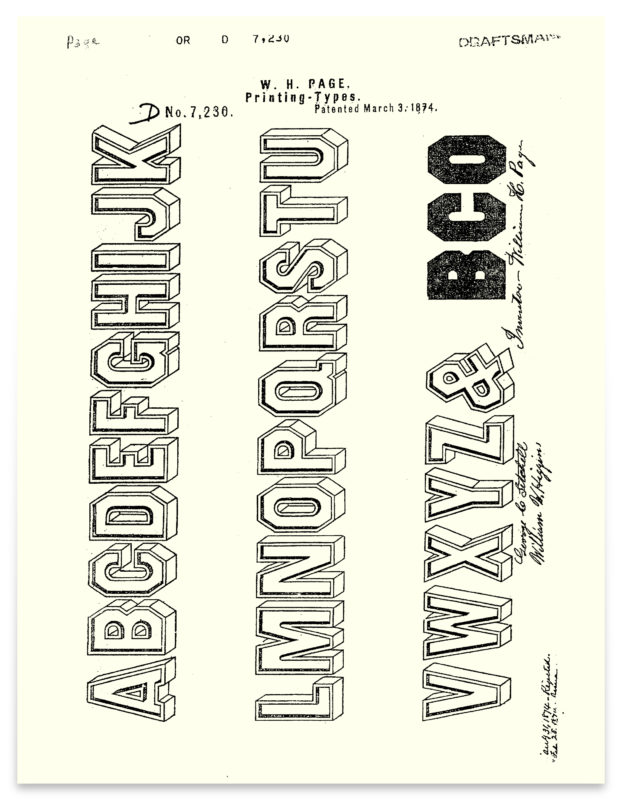

The shaded, chamfered sans serif design named Chromatic Gothic Paneled was first shown as a two-color chromatic^{1} in Wm H Page & Co’s 1874 Specimen of Chromatic Wood Type, Borders, &c. The schematic design, from which Chromatic Gothic Paneled was derived, was patented March 3, 1874 (filed Jan 5, 1874) as US Design Patent No 7,230 by William H Page. The patent displayed the underlying organizational structure of the design, providing the flexibility to produce a robust series of variations. This recursive approach created opportunities for the deployment of complex systems of subtle typographic modifications that produced a rich variety of visual expression. While not a direct influence on the variable font technology developed in the twenty-first century, this nineteenth-century approach indicated in Page’s patent application does provide an early example of parametric thinking in typeface design.

The description of the design included in the patent application stated that “[t]his design consists of a Gothic letter with shade, and having an inside panel sunk into the face of the letter, which is also shaded, thus leaving a narrow raised border around the outside and inside of the letters. These letters also have their curved parts upon their outer sides beveled in an octagonal form, while the inner parts remained curved … thus presenting a new combination of beveled and round parts….”

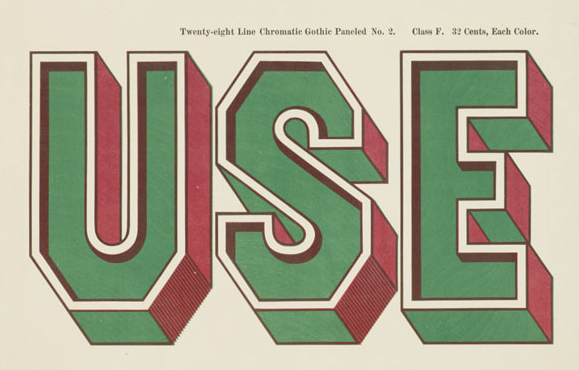

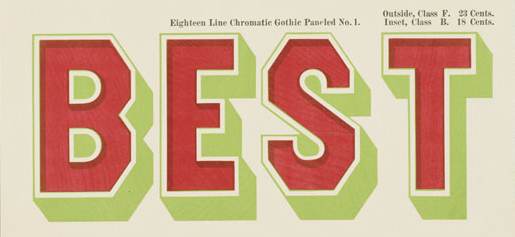

Page showed two other chromatic variations — Chromatic Paneled No 1 and Chromatic Paneled No 2 in the 1874 specimen catalog — both designs were the same as Chromatic Gothic Paneled but for a few differences in detail. No 1 did not include a rule around the shaded portion of the letterform, and No 2 was marked by the addition of pinstripes to the angled segment of the shaded portion of the letterform.

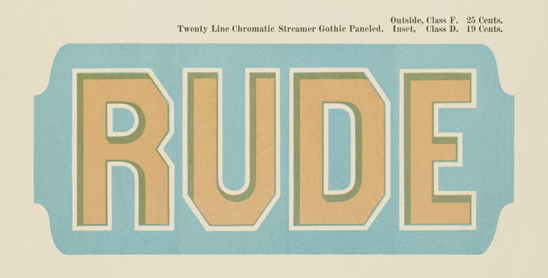

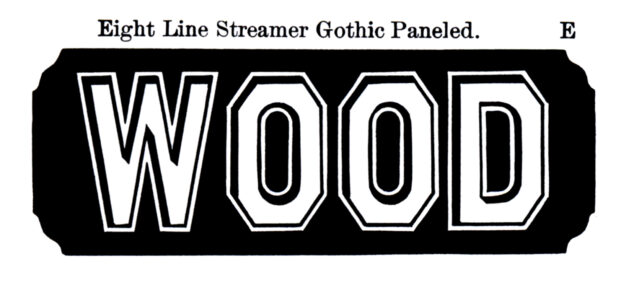

Page showed a streamer^{2} version of Chromatic Gothic Paneled named, fittingly, Chromatic Streamer Gothic Paneled. The design did not include Chromatic Gothic Paneled’s external shade portion of the letterforms but knocked the portion of the letter with the inside panel sunk into the face out of the banner element. The second color was a plain-faced inset used for the chromatic overlay, this part was shared with Chromatic Gothic Paneled No 1.

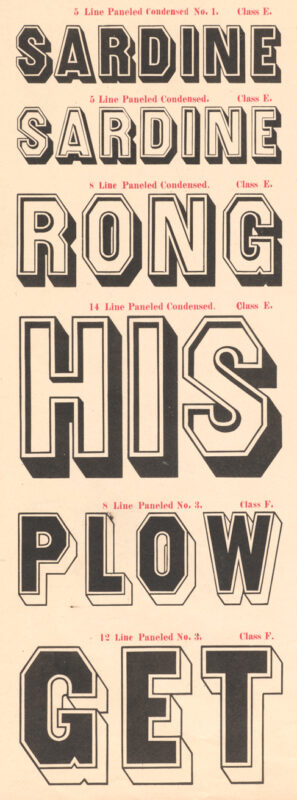

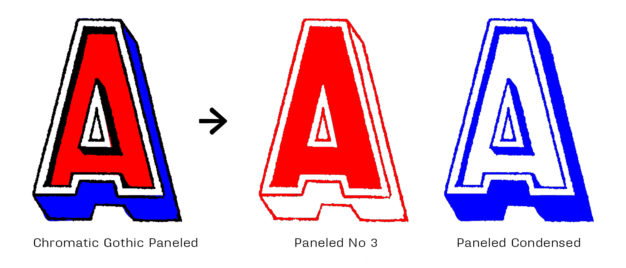

In subsequent specimen catalogs, starting with the 1876 Poster Specimens from the Wm H Page Wood Type Co, different configurations of the patented design were shown as single color — non-chromatic — versions. The single color variations were all assigned new names. One part of the two-part Chromatic Gothic Paneled became a single color option renamed Paneled Condensed. The second part of Chromatic Gothic Paneled was offered (though not until the 1882 specimen catalog) as a single color option named Paneled No 3^{3}.

In another variation, the two separate components of Chromatic Gothic Paneled were combined to produce a single color amalgamation. This variant was named Paneled Condensed No 1.

One part of the two-part Chromatic Gothic Paneled No 1 was the single color option named Paneled Condensed (and also used as one part of Chromatic Gothic Paneled as previously indicated). The second part of Chromatic Gothic Paneled No 1 was a plain-faced inset that Page named No 133^{4} and first shown in the 1880 Page’s Wood Type Album Vol 1, No 4.

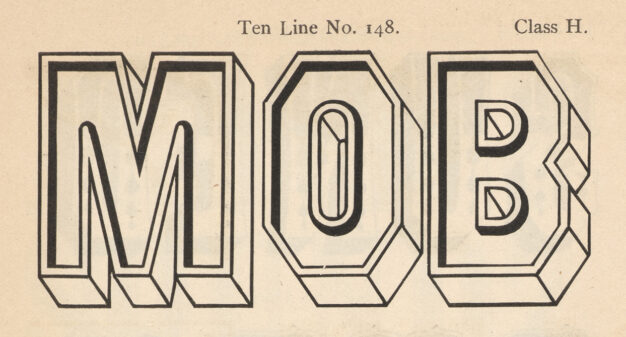

In the 1882 Specimens of Wood Type and Borders Page showed the non-chromatic No 148, which was an unaltered version of the schematic design presented in the design patent application of 1874.

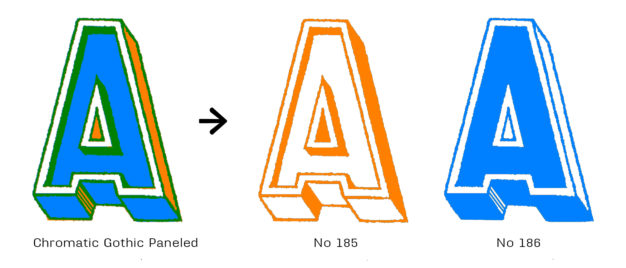

Page offered the two parts of Chromatic Gothic Paneled No 2 individually as No 185 and No 186 starting in 1887.

In all seven one-color designs and three two-color chromatic designs, as well a one one-color streamer, and one two-color chromatic streamer were offered by the Page companies (Wm H Page & Co and the Wm H Page Wood Type Co). All twelve design variations were derived from the original patent schematic and released over a thirteen-year period.

After The Hamilton Mfg Co acquired the William H Page Wood Type Co in 1891, the names of the faces were changed to fit into Hamilton’s numbering system. It seems that Hamilton offered both the single color and the chromatic options of the designs, though never explicitly showed the chromatic options in its specimen catalogs. Paneled Condensed became No 481, Paneled Condensed No 1 became No 490, and Paneled No 3 became No 467. Streamer Gothic Paneled was renamed No 377^{5} and Hamilton also offered a double lined streamer variant named No 145.

Page (Chromatic)	Page	Hamilton
Chromatic Gothic Paneled, part 1	Paneled Condensed	No 481
Chromatic Gothic Paneled, part 2	Paneled No 3	No 467

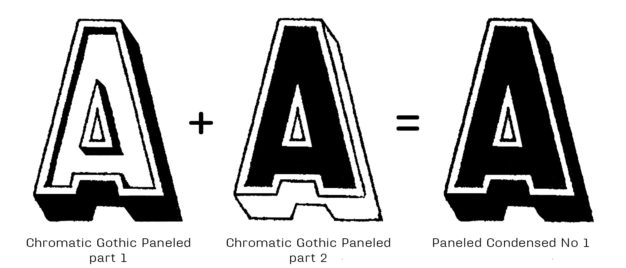

Chromatic Gothic Paneled, parts 1 & 2	Paneled Condensed No 1	No 490
Chromatic Gothic Paneled No 1, part 1	Paneled Condensed	No 481
Chromatic Gothic Paneled No 1, part 2	No 133	No 205 (No 4205)
Chromatic Gothic Paneled No 2, part 1	No 185	No 465
Chromatic Gothic Paneled No 2, part 2	No 186	No 470
	No 148	No 352
Chromatic Streamer Gothic Paneled, part 1	Streamer Gothic Paneled	No 377
Chromatic Streamer Gothic Paneled, part 2	No 133	No 205 (No 4205)



Origins of the plain-face and other American manufacturers

Rob Roy Kelly noted in American Wood Type 1828–1900 that William Leavenworth first showed a chamfered (angled-corner) plain-faced style in about 1837 (c.1836–1838 Specimen of Leavenworth’s Patent Wood Type, Manufactured by J. M. Debow, Allentown, N. J.) named Gothic No 2. These chamfered visual characteristics were also applied to the condensed Antique/Egyptian pattern and referred to as Grecian, which was popular from the late 1830s to the 1850s. The visual alteration to the Gothic pattern shown by Leavenworth did not gain wide popularity in America until the late 1870s. During the last quarter of the nineteenth century, most American manufacturers showed a variation of the plain-face design.
Hamilton — Gothic Condensed No 6 or No 205 (as early as 1889).
Morgans & Wilcox — Gothic No 2 (as early as 1889), later Hamilton No 3080.
National Printers’ Materials — Block Gothic (as early as 1887).

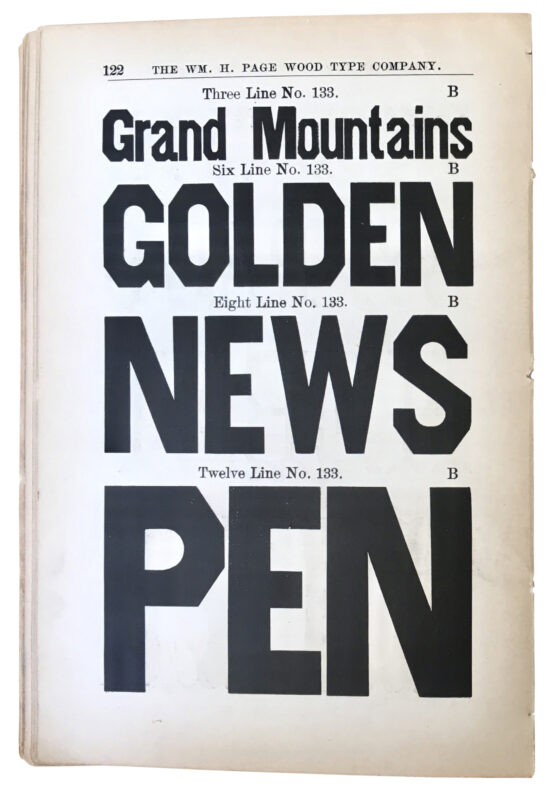

Page — No 133 (as a stand-alone design as early as 1880), later Hamilton No 4205.
Tubbs (AWT) — Gothic No 2 or No 2057 (as early as 1887) and Ancient Gothic in 1905.
Wells — Gothic Condensed Light Face No 2 or No 248 (as early as 1886), later Hamilton No 5080.

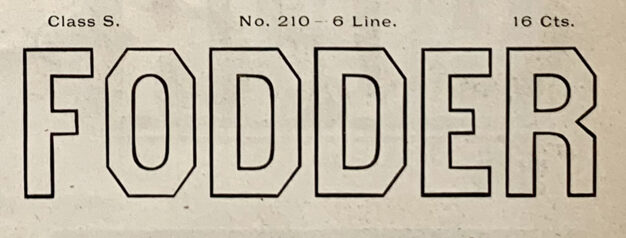

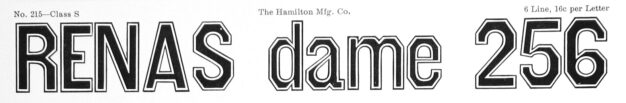

The Hamilton Mfg Co showed an unfilled, outlined version of the plain-face design (based on Page’s No 133) the company named No 210, and an open version of the plain-face design named No 215. It is not clear if either of these faces were acquired from Page, or if they were designed by The Hamilton Mfg Co after the 1891 acquisition. The Morgans & Wilcox Mfg Co offered an outlined variant as Gothic No 2 Open (this curiously was not given a Hamilton number after the company was acquired in 1895). Tubbs offered an outlined variant as No 2202.

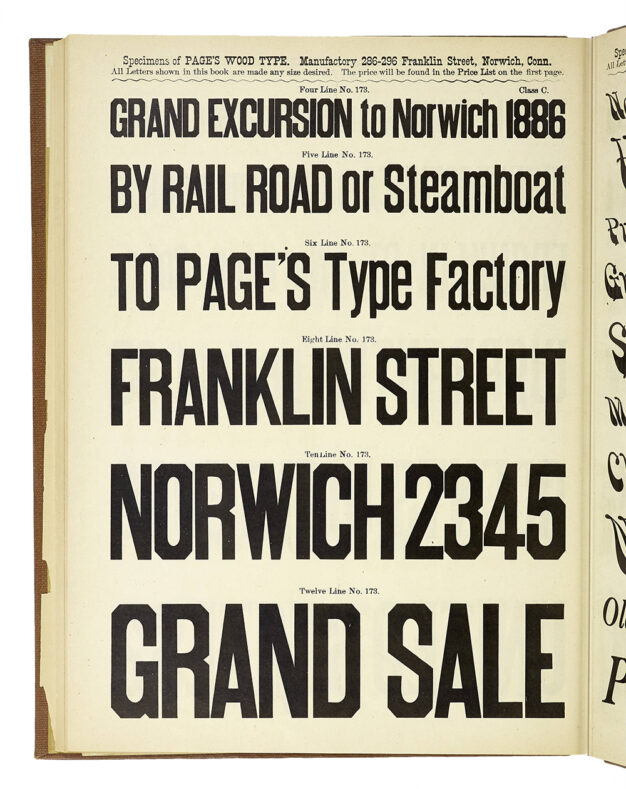

The William H Page Wood Type Co offered a condensed variant of No 133 named No 173^{6} first shown in January 1886 (renamed No 4119 after the Hamilton acquisition.) Hamilton offered a condensed variant named Gothic Condensed No 5 or No 119 first shown in 1887, and Tubbs offered a condensed variant named Acient Gothic Condensed or No 2150 shown at least as early as 1905.

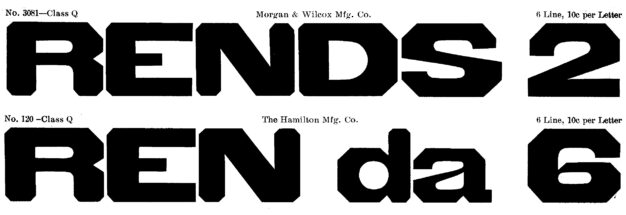

An extended variation of the plain-face design was shown by The Hamilton Mfg Co named in 120. The Morgans & Wilcox Mfg Co also offered a cut of the extended variation, though it does not appear in any known surviving specimen catalogs. It was renamed No 3081 after the Hamilton acquisition of 1895. The Hamilton Mfg Co also offered a unique light weight variant of the plain-faced design named ‘Special’ or No 6178 in 1906.

Last showing as wood type

The Hamilton Mfg Co was the last American wood type manufacturer to show any of the variations of the Paneled Gothic series. From the specimen record of known Hamilton catalogs, it does not appear that the company showed any of these design variations after the 1908 Catalog No 17 with the showing of No 205, No 210, No 465, No 467, and No 470.

———–
This was originally posted on 23 February 2017 on this website. It has been updated with text edits, refreshed images, an expanded section for the plain-faced variants, and new imformation about other manufacturer’s offerings.
